CoastOne CrimpOne Преси за кримпване
Технически Спецификации
|
Technical data |
C1-25sE |
C1-50sE |
C1-150E |
C1-300E |
|
Main technology |
AC SERVO DRIVEN BALLSCREW |
|||
|
Maximum hose size |
1 1/4 |
1 1/4 |
2 |
2 |
|
Crimping range |
10…54 |
10…54 |
10…87 |
10…87 |
|
Die type |
140 |
140 |
200 |
200 |
|
Max Opening [mm] |
25 |
25 |
33 |
33 |
|
Master die D/L [mm] |
84/78 |
84/78 |
99/97 |
99/97 |
|
Servo motor [kW] |
5 |
5 |
2×5 |
2×5 |
|
Repeating accuracy [mm] |
0,01 |
0,01 |
0,01 |
0,01 |
|
Crimping force [kN] |
250 |
500 |
1500 |
3000 |
|
Max crimp speed [mm/s] |
10 |
10 |
2 |
1 |
|
Length [mm] |
1250 |
1350 |
750 |
950 |
|
Width [mm] |
850 |
850 |
1250 |
1500 |
|
Height [mm] |
2100 |
2200 |
1400 |
1500 |
|
Weight [kg] |
700 |
900 |
1350 |
1600 |
Технически Спецификации
|
Technical data |

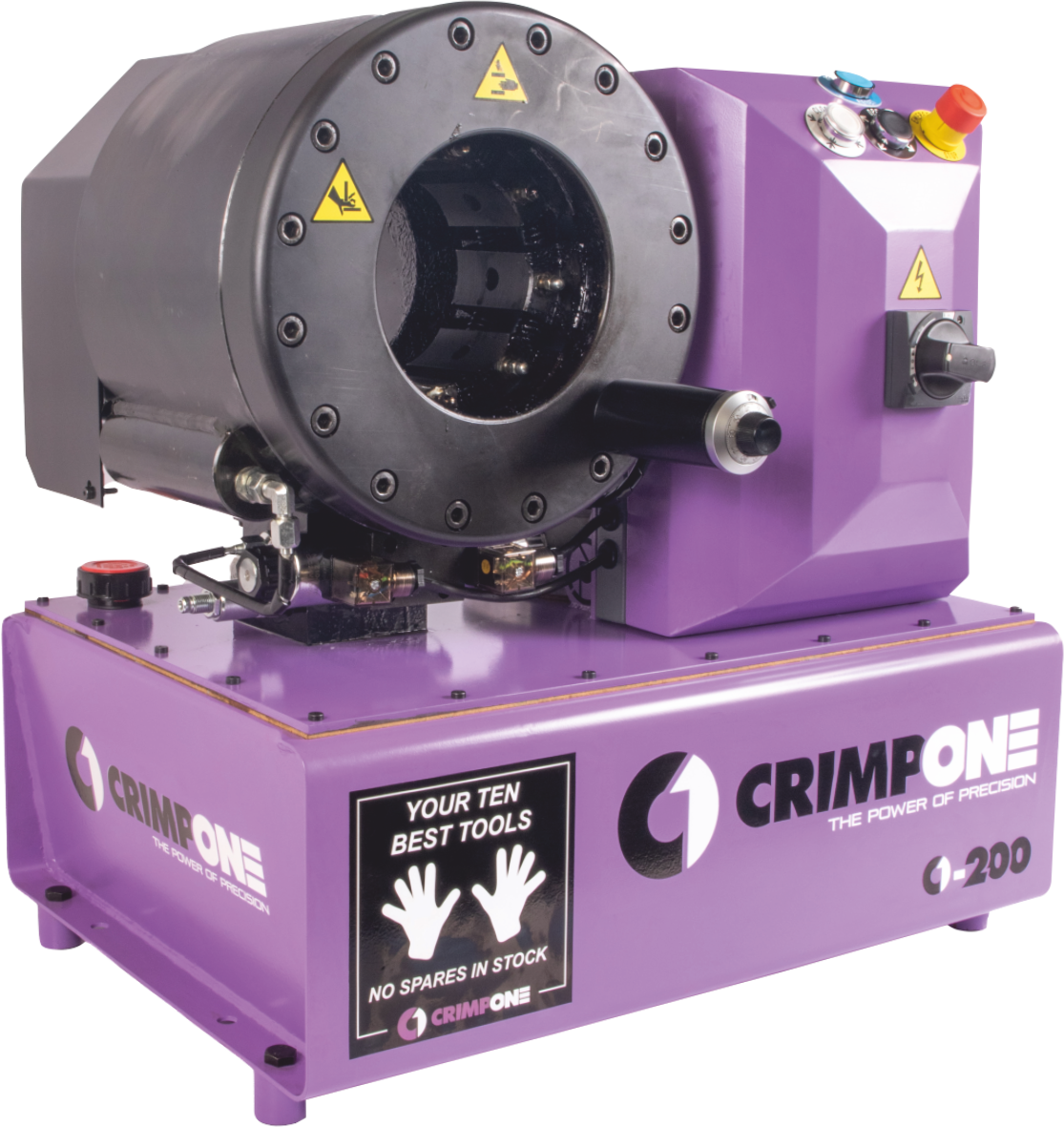

C1-140 |
C1-140B |
C1-200 |
C1-200B |
|
Maximum hose size |
||||
|
2 wire |
1 1/2 |
1 1/2 |
2″ |
2″ |
|
4 spiral |
1 1/4 |
1 1/4 |
2 |
1 1/4 |
|
Crimping range |
4…61 |
4…61 |
4…87 |
4…87 |
|
Die type |
140 |
140 |
200 |
200 |
|
Max Opening [mm] |
25 |
25 |
33 |
33 |
|
Master die D/L [mm] |
84/80 |
84/80 |
99/80 |
99/80 |
|
Motor [kW] |
3 |
1,5 |
4 |
1,5 |
|
Standard voltage [V] |
380VAC |
12VDC |
380VAC |
12VDC |
|
Crimping force [kN] |
1400 |
1300 |
1900 |
1700 |
|
Max crimping force [ton] |
140 |
130 |
190 |
170 |
|
Length [mm] |
596 |
571 |
596 |
626 |
|
Width [mm] |
475 |
533 |
543 |
543 |
|
Height [mm] |
591 |
387 |
591 |
421 |
|
Weight without oil [kg] |
135 |
85 |
190 |
115 |
